120 mm Silent Fan
Features improvement for airflow and excellent durability.
Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
SPECIFICATIONS

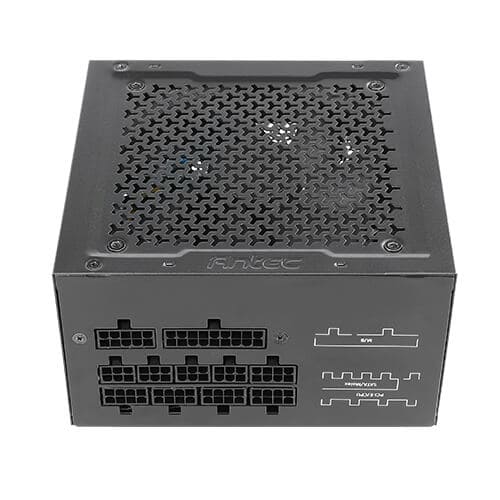

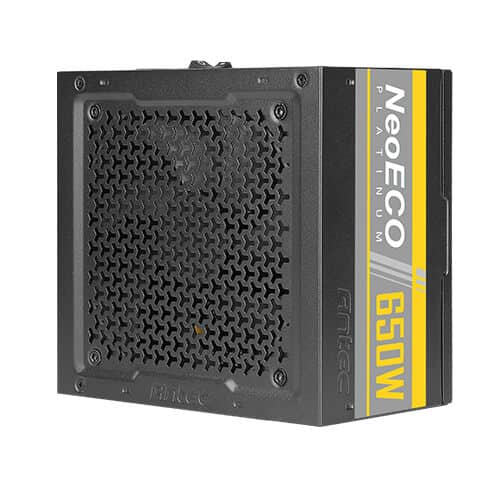

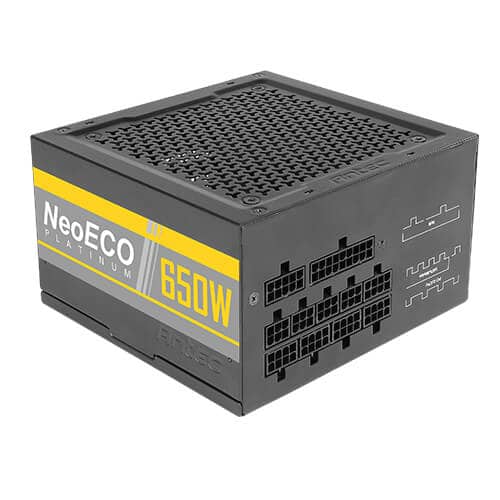

| Product Name | NE650 Platinum |
| Model Name | X8000A205JF-20 |
| Type | ATX 12V 2.4 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 7 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A max |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | 94% Typically |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 650W |
| Operation Temperature | 0 ~ 45°C |
| Regulatory | UL / TUV / CB / RCM / CE / CCC / FCC / BIS |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 4 x 8(6+2) Pin PCI-E | |
| 9 x SATA | |
| 4 x Molex | |
| 1 x FDD | |
| UPC# | 0-761345-11715-9 NE650 Platinum 0-761345-11716-6 NE650 Platinum AU 0-761345-11717-3 NE650 Platinum EC 0-761345-11718-0 NE650 Platinum GB 0-761345-11719-7 NE650 Platinum JP 0-761345-11720-3 NE650 Platinum CN |
